1P+N MCB 10A-40A | Compact Circuit Breake
1P+N MCB 10A-40A | Compact Circuit Breake - Image 2
1P+N MCB 10A-40A | Compact Circuit Breake - Image 3
1P+N MCB 10A-40A | Compact Circuit Breake - Image 4

1P+N MCB 10A-40A | Compact Circuit Breake

CNC Electric
SKU: N/A
(1 customer review)

₨ 950

Add to wishlist
Compare
12 People watching this product now!

Fast Shipping

Carrier information

20k products

Payment methods

24/7 Support

Unlimited help desk

2-day Delivery

Track or off orders

Additional information
AMPERE10A, 20A, 32A, 40A
Reviews (1)
5
1 review
1
0
0
0
0

1 review for 1P+N MCB 10A-40A | Compact Circuit Breake

Clear filters

  1. MUZAFFAR –

    Good product

    0
    0
Add a review

Your email address will not be published. Required fields are marked *

About brand
CNC LEGACY Founded: 1988 in Yueqing — the heart of China's electrical industry. CNC Electric began its journey as a specialist in low-voltage electrical and power transmission & distribution products. Since then, CNC has emerged as a global leader in delivering safe, reliable, and innovative solutions. Mission & Vision Mission: “To deliver power for a better life to the broadest audience!” Vision: To become the preferred brand in the electrical industry. Core Values Innovation Quality Customer-first philosophy Integrity Collaboration Efficiency Continual learning Joyful dedication Global Reach & Certifications Operating across more than 100 countries, CNC’s reach extends into every corner of the globe. Recognised certifications and approvals include: ISO 9001 ISO 14001 OHSAS 18001 CE CB SEMKO KEMA TÜV These certifications attest to CNC’s commitment to quality and safety. Your Trusted Partner for CNC Electric in Pakistan Welcome to CNC Electric Pakistan, your sole importer and distributor of authentically certified CNC Electric products in Pakistan since 2022. Backed by the renowned Cognitive Solutions, we ensure 100% quality assurance and unrivaled access to high-performance electrical components.

Description

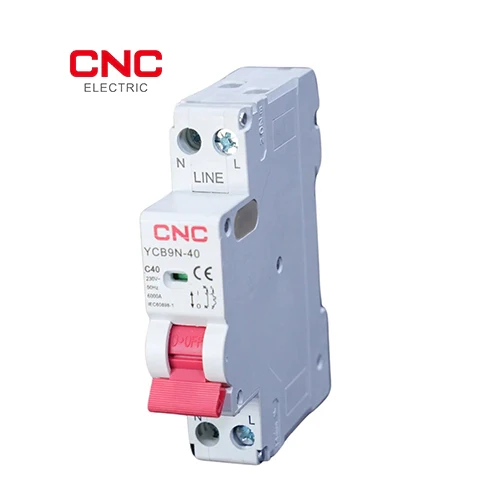

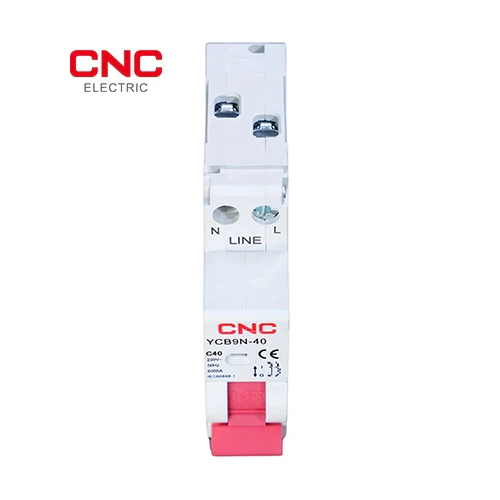

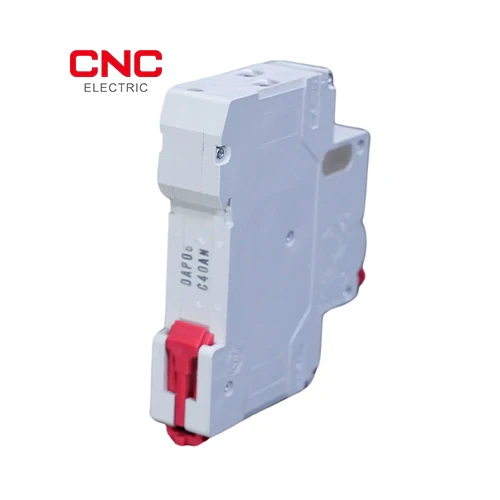

CNC YCB9N-40 1P+N MCB — 10A to 40A

The 1P+N MCB switches both live and neutral in a single-module width (18mm). It provides the same protection as a standard single-pole MCB but also disconnects the neutral on trip — an important safety feature for Pakistani wiring where phase and neutral can sometimes be reversed at the meter.

Because it takes only one DIN-rail module instead of two, you can fit twice as many circuits into the same DB box. This makes it the go-to choice for apartment and house panel boards where space is tight.

Specifications

Model YCB9N-40
Poles 1P+N (single module)
Rated Current 10A, 20A, 32A, 40A
Rated Voltage AC 230V / 50Hz
Breaking Capacity 6kA
Trip Curve C Curve
Width 1 module (18mm)
Mounting 35mm DIN Rail

Where to Use

  • Residential DB boards — lighting, fan, and AC circuits
  • Apartment panel boards where DIN-rail space is limited
  • Solar inverter sub-DB output circuits
  • Extension board and UPS output protection

Why 1P+N Over Standard 1P?

In Pakistan, meter wiring and internal house wiring sometimes swaps phase and neutral. A standard 1P MCB only breaks the line conductor — if the neutral is accidentally on the line terminal, the circuit stays live even after the MCB trips. The 1P+N design disconnects both conductors, eliminating this risk. It costs slightly more than a plain 1P MCB but the safety margin is worth it for residential use.
