3 Pole MCB 20A-63A | AC Circuit Breaker

SKU: N/A

₨ 1,350

10 People watching this product now!

Fast Shipping

Carrier information

20k products

Payment methods

24/7 Support

Unlimited help desk

2-day Delivery

Track or off orders

Additional information
AMPERE16A, 20A, 32A, 63A
Reviews (0)
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “3 Pole MCB 20A-63A | AC Circuit Breaker”

Your email address will not be published. Required fields are marked *

About brand
CNC LEGACY Founded: 1988 in Yueqing — the heart of China's electrical industry. CNC Electric began its journey as a specialist in low-voltage electrical and power transmission & distribution products. Since then, CNC has emerged as a global leader in delivering safe, reliable, and innovative solutions. Mission & Vision Mission: “To deliver power for a better life to the broadest audience!” Vision: To become the preferred brand in the electrical industry. Core Values Innovation Quality Customer-first philosophy Integrity Collaboration Efficiency Continual learning Joyful dedication Global Reach & Certifications Operating across more than 100 countries, CNC’s reach extends into every corner of the globe. Recognised certifications and approvals include: ISO 9001 ISO 14001 OHSAS 18001 CE CB SEMKO KEMA TÜV These certifications attest to CNC’s commitment to quality and safety. Your Trusted Partner for CNC Electric in Pakistan Welcome to CNC Electric Pakistan, your sole importer and distributor of authentically certified CNC Electric products in Pakistan since 2022. Backed by the renowned Cognitive Solutions, we ensure 100% quality assurance and unrivaled access to high-performance electrical components.

Description

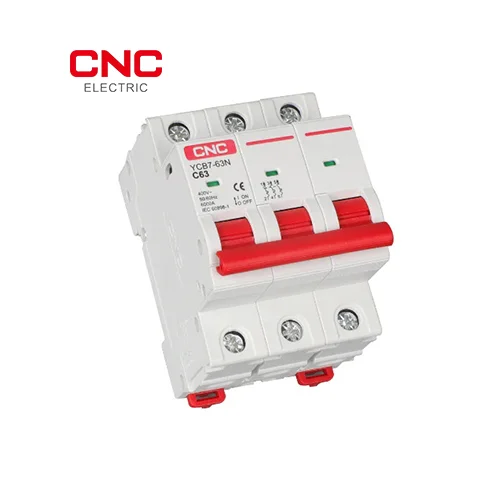

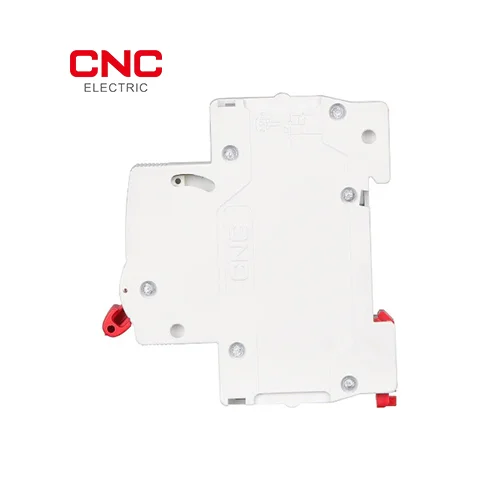

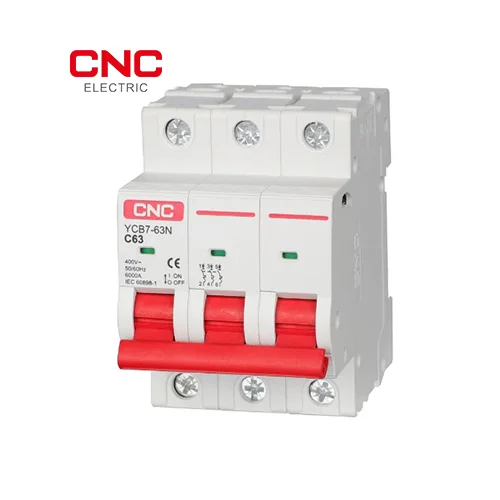

CNC YCB7-63N 3 Pole MCB — 16A to 63A

A three-pole miniature circuit breaker for three-phase circuits without neutral. The YCB7-63N 3P protects three-phase motors, compressors, and distribution feeders against overload and short circuit — standard equipment in Pakistani industrial and commercial panels.

Unlike the 4-pole version, this 3P MCB does not include a neutral pole. Use it where neutral is handled separately (busbar) or where the load does not need a switched neutral, such as 3-phase motor circuits.

Specifications

Model YCB7-63N (3P)
Poles 3 Pole
Rated Current 16A, 20A, 32A, 40A, 63A
Rated Voltage AC 400V / 50Hz
Breaking Capacity 6kA
Trip Curve C Curve
Mounting 35mm DIN Rail
Standard IEC 60898

Typical Uses

  • Three-phase motor protection (up to roughly 15 HP at 63A)
  • Sub-main breaker in 3-phase distribution boards
  • 3-phase air conditioning compressor feeder
  • Three-phase water pump starter panel
  • Small workshop machinery protection

Sizing Tip

For motor protection, pick a C-curve MCB rated at 1.25x the motor full-load current. A 10 HP motor drawing about 19A on 3-phase 400V should use the 32A variant. For lighting or resistive loads, the 20A or 32A covers most commercial panels.
