Aerosol Fire Extinguisher | DB & Switchgear
Original price was: ₨ 1,500.₨ 1,100Current price is: ₨ 1,100.
DC SPD 600V/1000V In=20KA Imax=40KA CARTRIDGE Surge Protection Devices YCBS6-C
Price range: ₨ 850 through ₨ 1,150
-5%
DC SPD 1000V 2 Pole | Solar Surge Protector
Original price was: ₨ 3,700.₨ 3,500Current price is: ₨ 3,500.
13
People watching this product now!
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Additional information
| Voltage | 1000V |
|---|---|
| Size And Voltage: | Size: In 20KA – Imax 40KA |
Reviews (0)
About brand
CNC LEGACY
Founded: 1988 in Yueqing — the heart of China's electrical industry.
CNC Electric began its journey as a specialist in low-voltage electrical and power transmission & distribution products. Since then, CNC has emerged as a global leader in delivering safe, reliable, and innovative solutions.
Mission & Vision
Mission: “To deliver power for a better life to the broadest audience!”
Vision: To become the preferred brand in the electrical industry.
Core Values
Innovation
Quality
Customer-first philosophy
Integrity
Collaboration
Efficiency
Continual learning
Joyful dedication
Global Reach & Certifications
Operating across more than 100 countries, CNC’s reach extends into every corner of the globe.
Recognised certifications and approvals include:
ISO 9001
ISO 14001
OHSAS 18001
CE
CB
SEMKO
KEMA
TÜV
These certifications attest to CNC’s commitment to quality and safety.
Your Trusted Partner for CNC Electric in Pakistan
Welcome to CNC Electric Pakistan, your sole importer and distributor of authentically certified CNC Electric products in Pakistan since 2022. Backed by the renowned Cognitive Solutions, we ensure 100% quality assurance and unrivaled access to high-performance electrical components.
Description

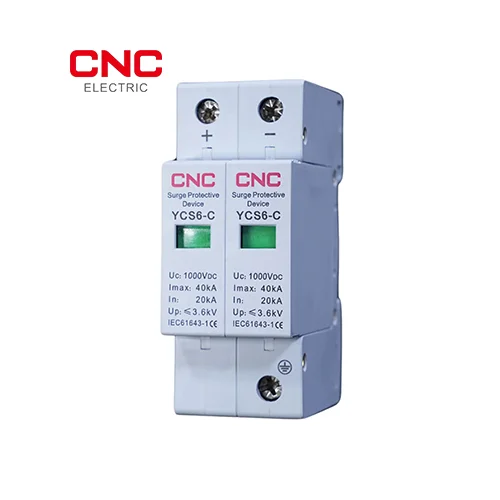

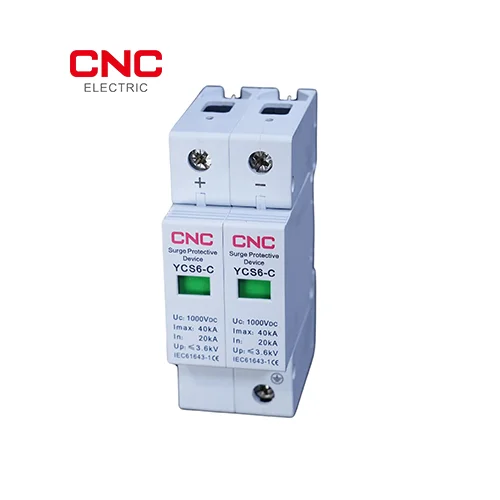

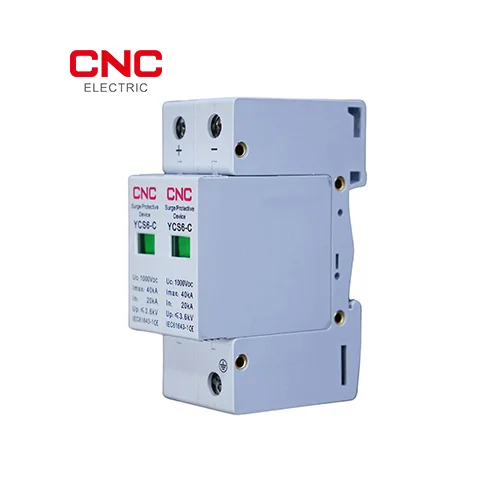

Looking for a DC SPD 2 pole 1000V price in Pakistan for a solar combiner box, inverter-side DC panel, or rooftop PV protection setup? This CNC Electric solar surge protector is built for installers and buyers who want proper DC-side surge control instead of leaving the photovoltaic system exposed to lightning-related and switching transients. In Pakistan, solar installations often face harsh weather, unstable grid environments, and exposed rooftop cable runs, which makes a dedicated SPD much more than an optional accessory. For solar installers, EPC teams, and panel builders, this is a practical protection device for cleaner and more reliable DC-side system design.
Key Features
- 2 pole DC surge protection device designed for solar PV systems and other DC-side photovoltaic applications.
- 1000V DC maximum continuous working voltage on the live local page, making it suitable for serious solar DC protection work.
- Nominal discharge current In 20kA and maximum discharge current Imax 40kA for practical surge-handling duty.
- T1+T2 test category gives it a stronger positioning than a basic light-duty surge accessory for solar use.
- Pluggable modular design helps maintenance and replacement without disturbing the whole panel layout.
- Fast response time up to 25ns based on zinc oxide technology, according to the local product page.
- Green status window shows normal condition and red indicates a failed module that should be replaced.
Technical Specifications
| Specification | Published / Safe-to-State Detail |
|---|---|
| Product Type | DC 2 Pole Solar Surge Protection Device |
| Local Selling Title | DC 2P 1000V 20KA-40KA Surge Protection Device YCS6-C |
| Number of Poles | 2 Pole |
| Maximum Continuous Working Voltage UCPV | 1000V DC |
| Nominal Discharge Current In | 20kA |
| Maximum Discharge Current Imax | 40kA |
| Maximum Impulse Current Iimp | 6.25kA |
| Voltage Protection Level Up | 2.2kV |
| Response Time | ≤25ns |
| Test Category | T1 + T2 |
| Standards Listed | IEC 61643-31:2018; EN 50539-11:2013+A1:2014 |
| Working Temperature Range | -40°C to +70°C |
| Allowable Working Humidity | 5% to 95% |
| Conductor Cross Section (Maximum) | 35mm² |
| Installation Method | DIN35 standard DIN rail |
| Protection Degree | IP20 |
| Shell Material | Fire-proof level UL 94 V-0 |
| Thermal Protection | Yes |
| Current Live Listing Price | Rs.3,700 |
| Optional Feature Mentioned | Remote signal contacts optional |
