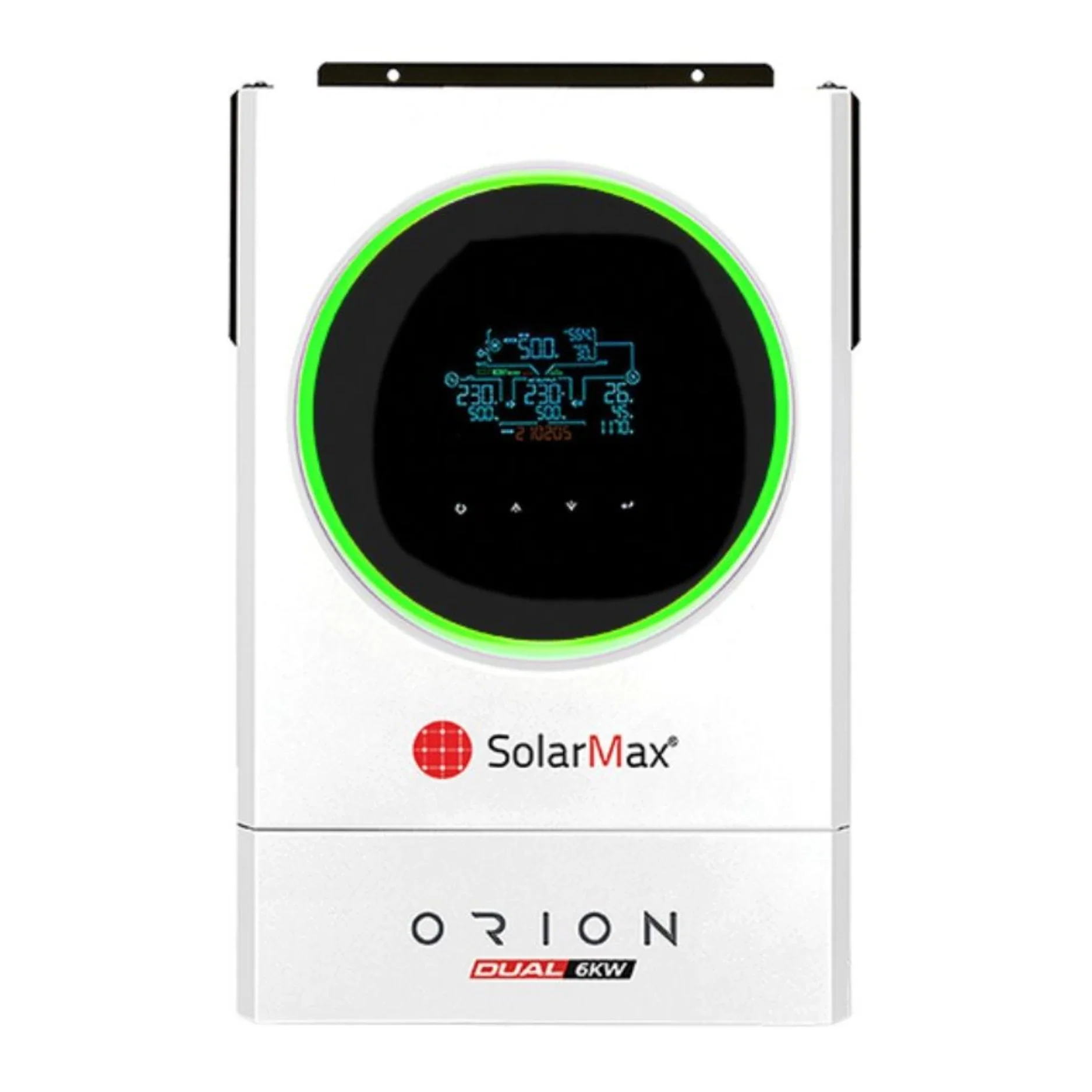

SolarMax Orion 6KW Hybrid Inverter

•         Max PV Input 7000W.
• ·         Max PV Voltage 500VDC.
• ·         Max PV Input Current 27A.
• ·         MPPT Range 120 ~ 450V.
• ·         DUAL AC Output 6000W (For Smart & Critical Load)
• ·         120A Max Charging Current.
• ·         48VDC Battery (Work With & Without Battery)
• ·         RGB Lights For Status Indication.

The SolarMax Orion 6KW is a hybrid inverter designed to provide efficient and reliable power solutions for both residential and commercial applications. Its advanced features and robust design make it a versatile choice for managing energy needs.

Key Features:

• Pure Sine Wave Output: Delivers clean and stable electricity suitable for all types of appliances.
• Dual AC Output: Provides separate outputs for normal and heavy loads, ensuring optimal power distribution.
• 7KW MPPT PV Input: Equipped with a Maximum Power Point Tracking (MPPT) input, allowing for efficient energy harvest from solar panels.
• Battery Compatibility: Operates with or without a battery (48V DC), offering flexibility in system design.
• Built-in Wi-Fi: Enables easy monitoring and control of the inverter’s performance via a user-friendly interface.
• Smart Power Management: Allows users to set multiple schedules for energy usage, enhancing efficiency.
• Battery Management System (BMS): Integrated BMS ensures optimal battery performance and longevity.
• Short-Circuit Protection: Incorporates smart safety features to protect against electrical faults.
• Parallel Capability: Supports parallel operation, allowing up to nine units to be connected in single-phase or three-phase configurations for increased capacity.

Technical Specifications:

• Model: SM-ORION-DUAL-6KW
• Rated Power: 6000W
• Maximum PV Input Power: 7000W
• Maximum PV Voltage: 500VDC
• MPPT Operating Voltage Range: 120V ~ 450V
• Maximum PV Input Current: 27A
• Battery Voltage: 48VDC
• Maximum Charging Current: 120A
• Communication Interface: USB/RS232/RS485/WiFi/Dry-contact
• Operating Temperature Range: -10°C to 50°C
• Dimensions: 140 x 295 x 468 mm
• Weight: 12 kg

Applications:

The SolarMax Orion 6KW inverter is ideal for:

• Residential Solar Installations: Providing reliable power for household appliances and reducing electricity bills.
• Commercial Use: Supporting energy demands in small to medium-sized businesses.
• Uninterrupted Power Supply (UPS): Ensuring continuous power during grid outages.
