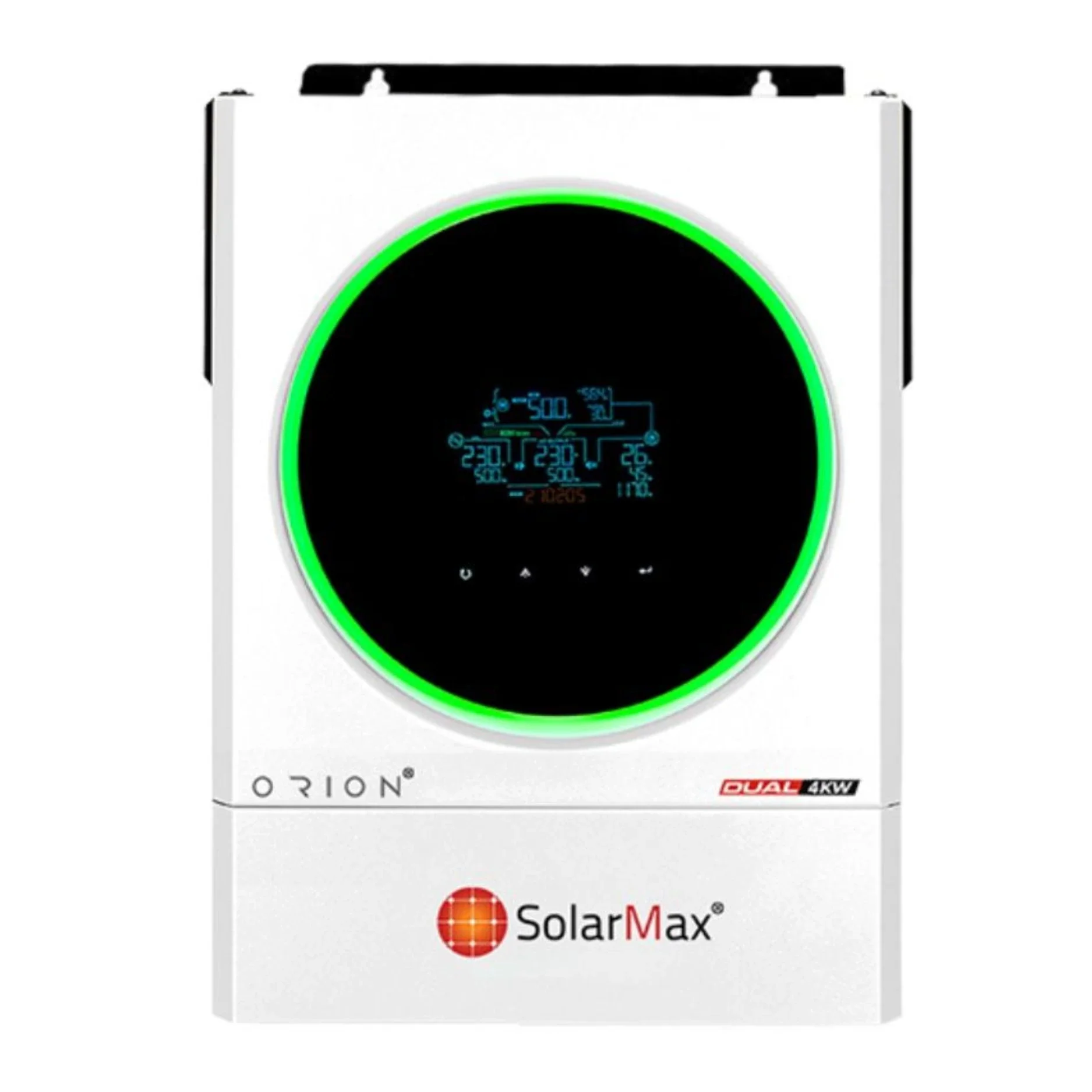

SolarMax Orion 4KW Hybrid Inverter

The SolarMax Orion 4KW is a versatile hybrid inverter designed to provide efficient and reliable power solutions for both residential and commercial applications. Its advanced features and robust design make it a popular choice for managing energy needs in various settings.

Key Features:

• Pure Sine Wave Output: Delivers clean and stable electricity suitable for all types of appliances.
• Dual AC Output: Provides separate outputs for normal and heavy loads, ensuring optimal power distribution.
• MPPT Solar Charger: Equipped with a Maximum Power Point Tracking (MPPT) solar charger, optimizing energy harvest from solar panels.
• Battery Compatibility: Operates with or without a battery (24V DC), offering flexibility in system design.
• Built-in Wi-Fi: Enables easy monitoring and control of the inverter’s performance via a user-friendly interface.
• Smart Power Management: Allows users to set multiple schedules for energy usage, enhancing efficiency.
• Battery Management System (BMS): Integrated BMS ensures optimal battery performance and longevity.
• Short-Circuit Protection: Incorporates smart safety features to protect against electrical faults.

Technical Specifications:

• Model: SM-ORION-DUAL-4KW
• Rated Power: 4000VA/4000W
• Input Voltage: 230 VAC
• Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
• Frequency Range: 50 Hz/60 Hz (Auto sensing)
• Output AC Voltage Regulation (Battery Mode): 230VAC ± 10%
• Surge Power: 8000VA
• Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances)
• Waveform: Pure sine wave
• Battery Voltage: 24 VDC
• Floating Charge Voltage: 27 VDC
• Overcharge Protection: 33 VDC
• Solar Charger Type: MPPT
• Maximum PV Array Power: 5000W
• MPPT Range Operating Voltage: 60 ~ 450 VDC
• Maximum PV Array Open Circuit Voltage: 500 VDC
• Maximum PV Input Current: 27A
• Maximum Solar Charge Current: 120A
• Maximum AC Charge Current: 100A
• Maximum Charge Current: 120A
• Dimensions (D x W x H): 119 x 313.6 x 457.5 mm
• Net Weight: 10 kg
• Communication Interface: USB/RS232/RS485/WiFi/Dry-contact
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -15°C to 60°C
• Humidity: 5% to 95% Relative Humidity (Non-condensing)
