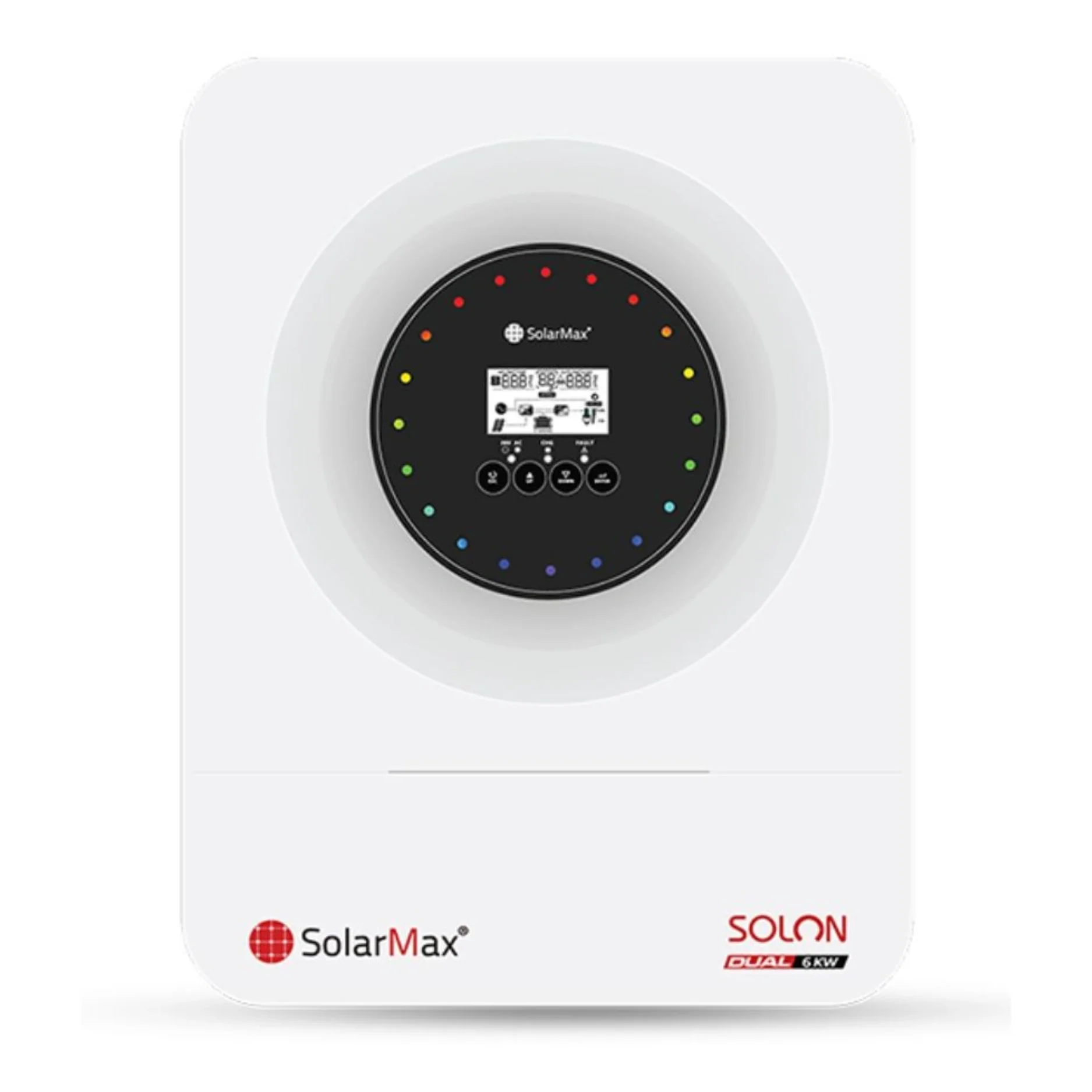

SolarMax Solon Dual 6KW Hybrid Inverter

The SolarMax Solon Dual 6KW is a high-performance hybrid inverter designed to provide efficient and reliable power solutions for both residential and commercial applications. Its advanced features and robust design make it a versatile choice for managing energy needs.

Key Features:

• Pure Sine Wave Output: Delivers clean and stable electricity suitable for all types of appliances.
• Dual AC Output: Provides separate outputs for normal and heavy loads, ensuring optimal power distribution.
• 6.5KW MPPT PV Input: Equipped with a Maximum Power Point Tracking (MPPT) input, allowing for efficient energy harvest from solar panels.
• Battery Compatibility: Operates with or without a 48V DC battery, offering flexibility in system design.
• Built-in Wi-Fi: Enables easy monitoring and control of the inverter’s performance via a user-friendly interface.
• Smart Power Management: Allows users to set multiple schedules for energy usage, enhancing efficiency.
• Battery Management System (BMS): Integrated BMS ensures optimal battery performance and longevity.
• Short-Circuit Protection: Incorporates smart safety features to protect against electrical faults.

Technical Specifications:

• Model: SM-SOLON-DUAL-6KW
• Rated Power: 6000W
• Input Voltage: 230 VAC
• Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
• Frequency Range: 50 Hz/60 Hz (Auto sensing)
• Surge Power: 12000 VA
• Waveform: Pure Sine Wave
• Transfer Time: 10 ms (For Computers); 20 ms (For Home Appliances)
• Dual AC Output (Main load & Smart load): 6000W
• Battery Voltage: 48 VDC
• Floating Charge Voltage: 54 VDC
• Overcharge Protection: 61 VDC
• Maximum AC Charge Current: 100A
• Maximum PV Array Open Circuit Voltage: 500 VDC
• Maximum PV Array Power: 6000W+
• Maximum PV Input Current: 27A
• MPPT Range Operating Voltage: 60-450 VDC
• Maximum Solar Charge Current: 120A
• Communication Interface: Built-in Wi-Fi for remote monitoring and RS485 for BMS compatibility with lithium batteries.
• Display: LCD screen for easy monitoring of system status and settings.
• Operating Environment:
  • Humidity: 5% to 90% (non-condensing)
  • Operating Temperature: -10°C to 50°C
  • Storage Temperature: -15°C to 60°C
• Physical Dimensions: 125mm x 340mm x 420mm
• Weight: 9 kg
• RGB Lights: For status indication, making it easy to monitor inverter health and operation at a glance.

Applications:

The SolarMax Solon Dual 6KW inverter is ideal for:

• Residential Solar Installations: Providing reliable power for household appliances and reducing electricity bills.
• Commercial Use: Supporting energy demands in small to medium-sized businesses.
• Uninterrupted Power Supply (UPS): Ensuring continuous power during grid outages.
